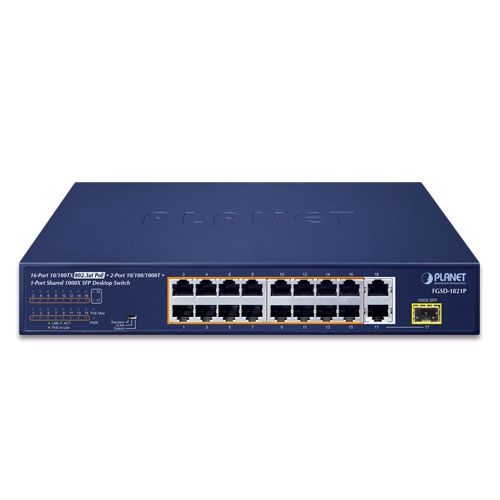

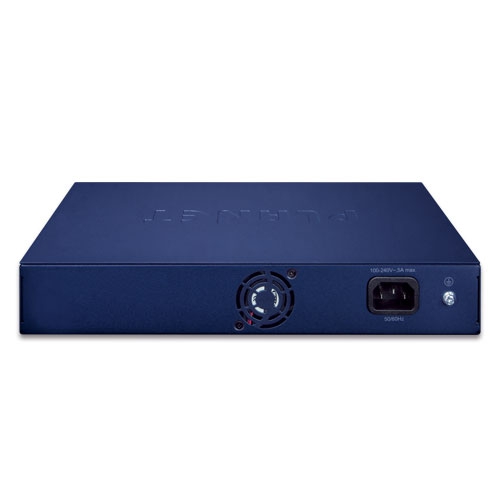

The 16-Port 10/100TX 802.3at PoE + 2-Port Gigabit + 1-Port Shared 1000X SFP Desktop Switch is a high-performance power-over-Ethernet solution designed for IP surveillance, wireless access networks, and small to medium enterprise connectivity. It features 16 PoE+ Fast Ethernet ports that comply with IEEE 802.3af/at standards, enabling simultaneous power and data delivery using a single Ethernet cable — reducing overall installation cost and complexity.

With an enhanced 185W total PoE power budget, this switch can support high-power devices such as PTZ cameras, dual-band access points, digital signage displays, security door controllers, and VoIP endpoints. The inclusion of 2 Gigabit RJ45 uplink ports and 1 shared Gigabit SFP fiber port ensures high-speed backbone connections to NVRs, servers, and core switches — enabling smooth video streaming and faster data transfers across the network.

Plug-and-play installation makes the switch extremely user-friendly, while built-in surge protection and smart power allocation maintain reliable performance under continuous operation. The compact desktop design is suitable for control rooms, office desks, and confined network spaces demanding quiet and efficient operation.

This switch is an ideal choice for medium-sized offices, commercial buildings, education institutions, and retail surveillance infrastructure requiring stable bandwidth, strong PoE capabilities, and flexible uplink connectivity.

✨ Key Features

• 16 × 10/100TX PoE/PoE+ ports (IEEE 802.3af/at compliant)

• 185W PoE budget supports multiple high-power devices

• 2 × Gigabit uplink ports for high-speed backbone connectivity

• 1 × Shared 1000X SFP port for long-distance fiber transmission

• Plug-and-play deployment — no manual configuration needed

• Intelligent PoE power management with overload protection

• Surge protection improves network safety and reliability

• Quiet desktop design for office & surveillance environments

• Supports CCTV, wireless, and voice communication networks

🎯 Applications

• CCTV surveillance systems with PTZ and IR cameras

• Long-distance fiber backbone networks using SFP modules

• Wi-Fi 5/6 Access Point deployment

• VoIP communication infrastructure

• Smart building automation & IoT device powering

• Retail stores, SMEs, schools & hospitality environments
