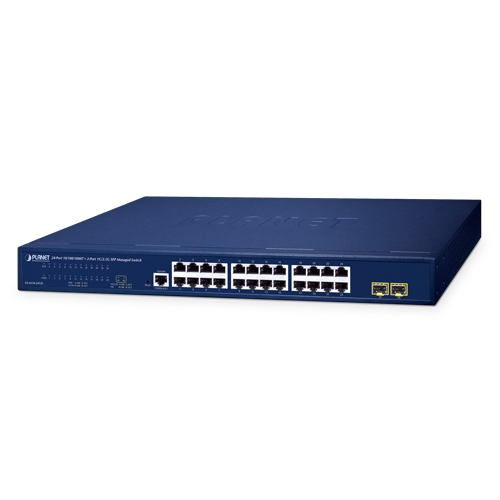

The 24-Port 10/100/1000T + 2-Port 1G/2.5G SFP Managed Ethernet Switch is a powerful Layer 2 managed switch designed to deliver exceptional performance and intelligent network control. It comes equipped with 24 auto-negotiation Gigabit Ethernet RJ45 ports for high-speed LAN access and 2 SFP uplink slots that support 1G/2.5G fiber modules, enabling flexible, long-distance connectivity across floors or buildings.

This switch is ideal for businesses that demand network stability, scalability, and secure traffic management. With advanced Layer 2 features—including VLAN, QoS, Link Aggregation, and multicast control—it ensures smooth data flow even under heavy network load.

The device supports a comprehensive web-based management interface, SNMP, and command-line configuration, making administration simple for both IT teams and system integrators. It is optimized for enterprises, surveillance backbones, data centers, and high-density networking environments.

🔧 Key Features

1. High-Speed Network Performance

• 24 × 10/100/1000 Mbps RJ45 Gigabit ports

• 2 × 1G/2.5G dual-speed SFP uplink ports

• Supports fiber modules for long-distance backbone links

• Auto MDI/MDIX on all copper ports

2. Advanced Managed Layer 2 Features

• 802.1Q VLAN (Port-based & Tagged)

• Link Aggregation (LACP)

• Spanning Tree Protocol: STP / RSTP / MSTP

• IGMP Snooping for multicast optimization

• Port mirroring for diagnostics

3. Enterprise-Level Security

• 802.1X Port Authentication

• MAC Filtering & Port Security

• DHCP Snooping

• Dynamic ARP Inspection

• Storm Control (broadcast/multicast)

4. Intelligent Traffic Management

• QoS with 4 or 8 priority queues

• Rate limiting & bandwidth control per port

• IGMP Snooping for IP camera or IPTV networks

5. Robust & Reliable Design

• Strong metal housing for rackmount installation

• Stable performance for 24/7 operations

• LED indicators for power, link, and activity

• Suitable for office networks, server rooms, and surveillance NVR networks

📌 Applications

• Enterprise networks

• Surveillance systems (IP cameras + NVR)

• Data centers and server rooms

• Campus and multi-building fiber backbone

• Hotel, hospital, and corporate infrastructure
